KINETIC BREACHING TOOL (KBT)
The future of tactical breaching technology is now at your fingertips.
VIEW KBT TOOLS VIEW KBT HEADS SHOP NOW
A New Standard in Breaching Technology
The Kinetic Breaching Tool™ is a revolutionary new forced entry tool that bridges the gaps between traditional mechanical, ballistic, and explosive entry techniques. Designed from the ground up for breaching, the tool utilizes a self- contained semi-automatic firing mechanism that has no projectiles or explosive pressures exiting the tool.
The KBT™ utilizes a proprietary blank cartridge to deliver up to 850 ft/lb of kinetic energy through a steel ram or over 70 Ksi of cutting force through steel teeth. Unlike explosive or ballistic breaching, all of the force is mechanically driven through the head of the tool. This means that no projectile or explosive energy leaves the device except for the force through the tool's head.
KEY FEATURES:
Powered by .45 caliber blanks

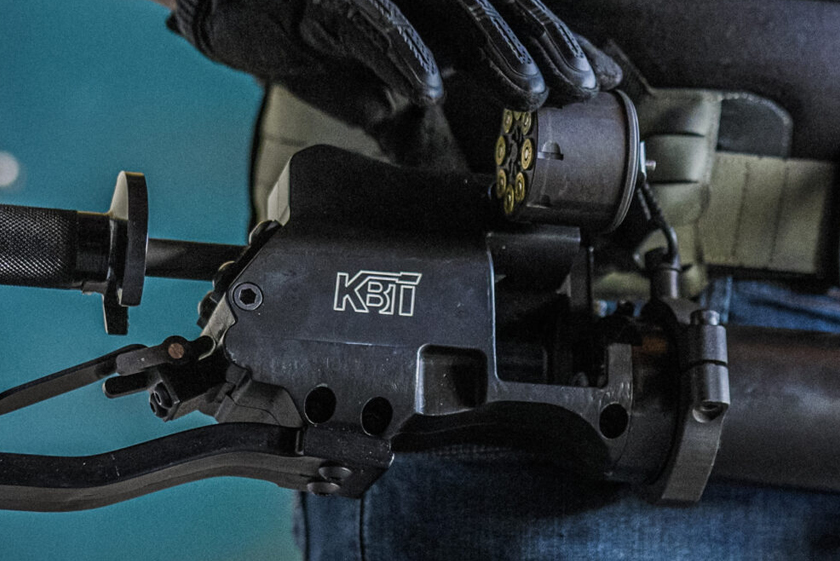

Utilizes 8-round cylinder for multiple breaches
Stainless steel frame with rigid cast urethane handle
Four head options for multiple mission capabilities
Swap heads in seconds with quick disconnect V-band clamp
Tool resets in less than a second
Less than 115 dB noise report

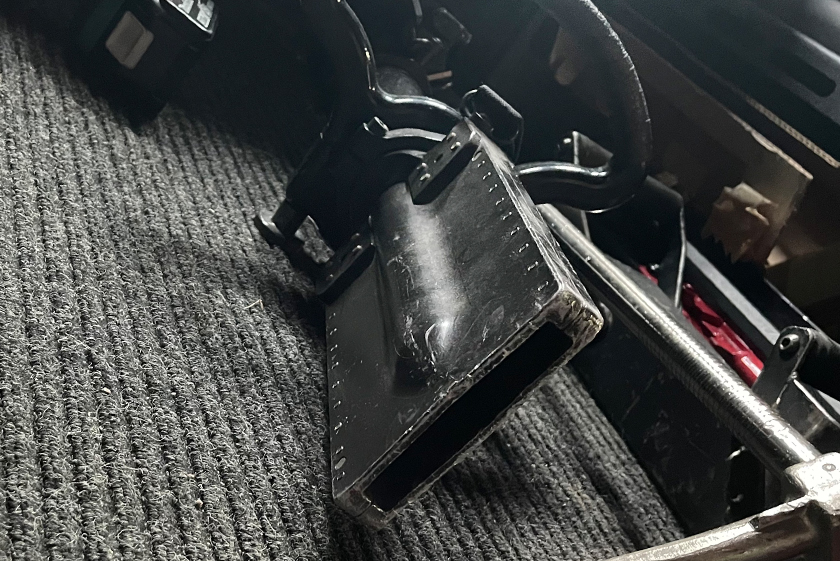

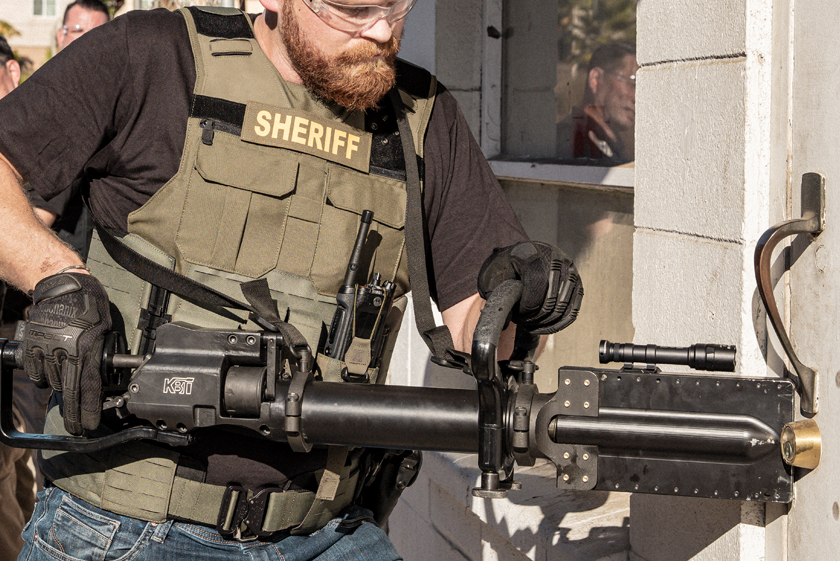

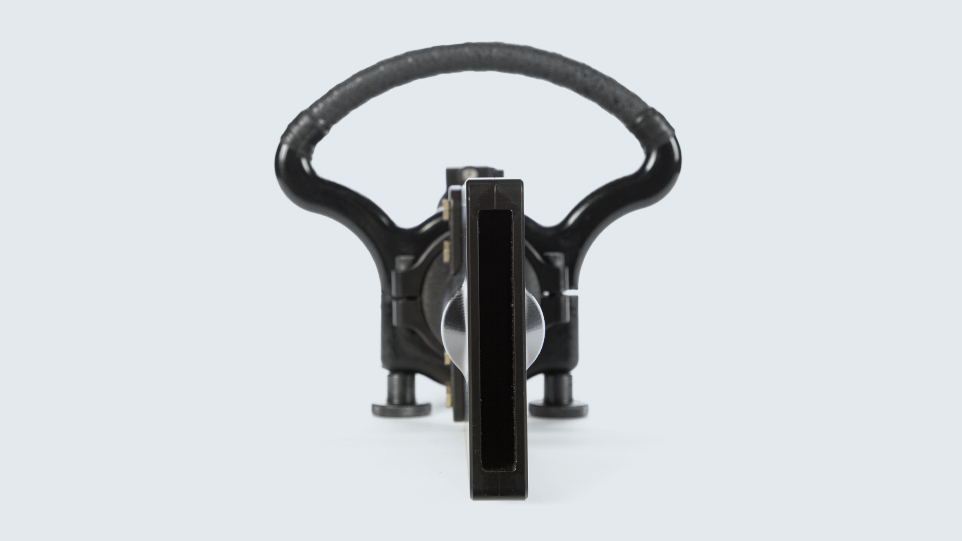

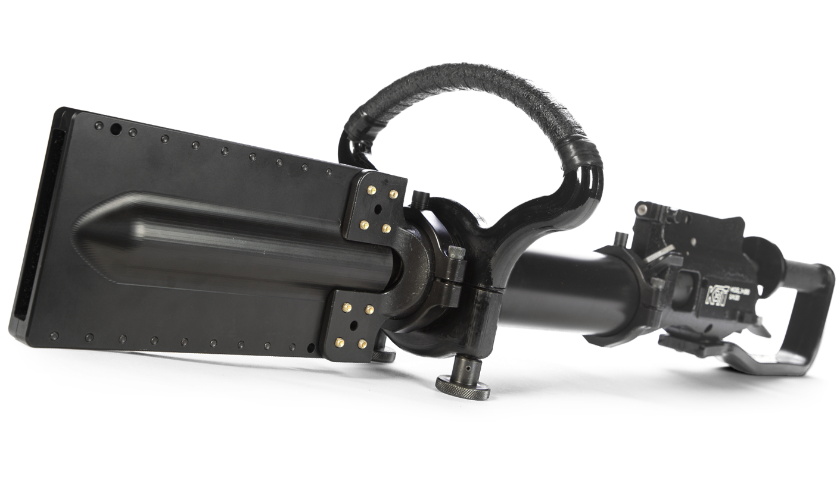

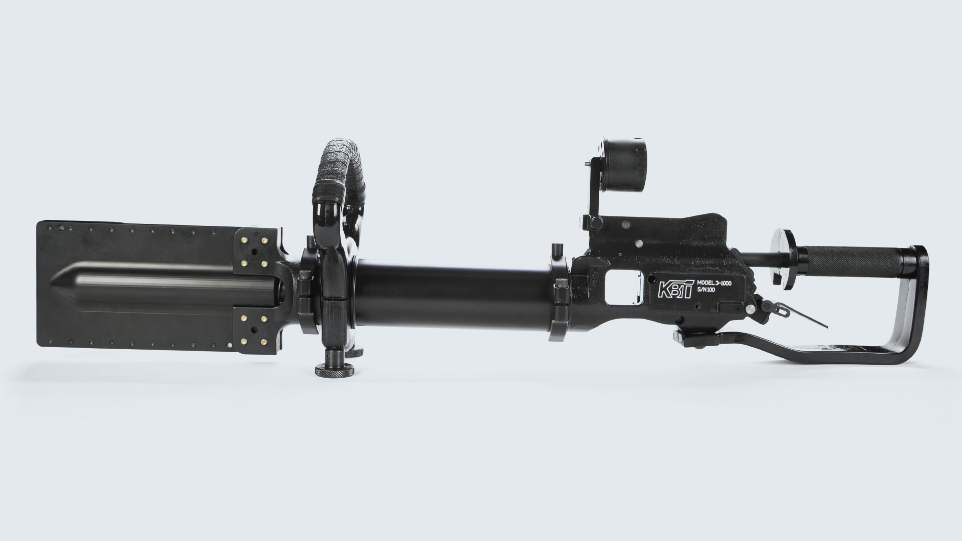

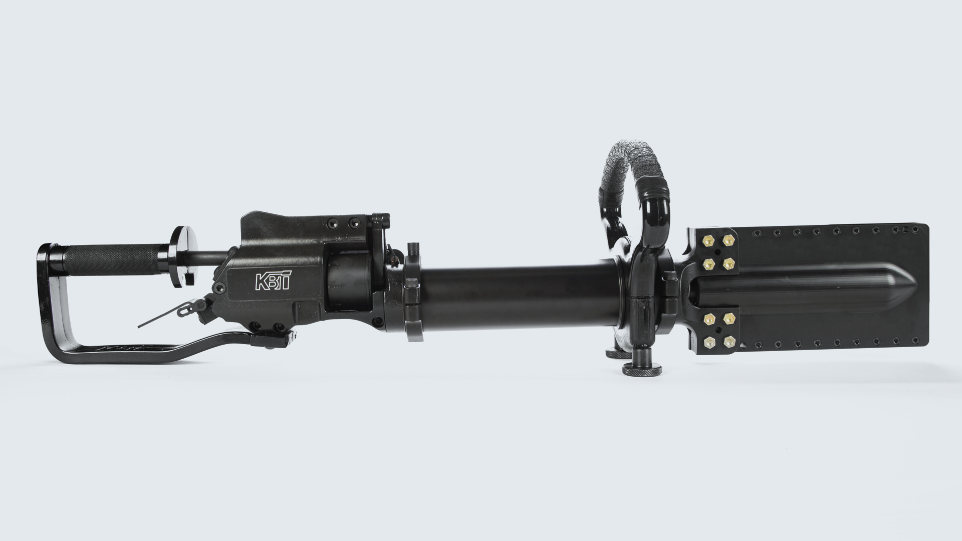

KBT IMPACT RAM

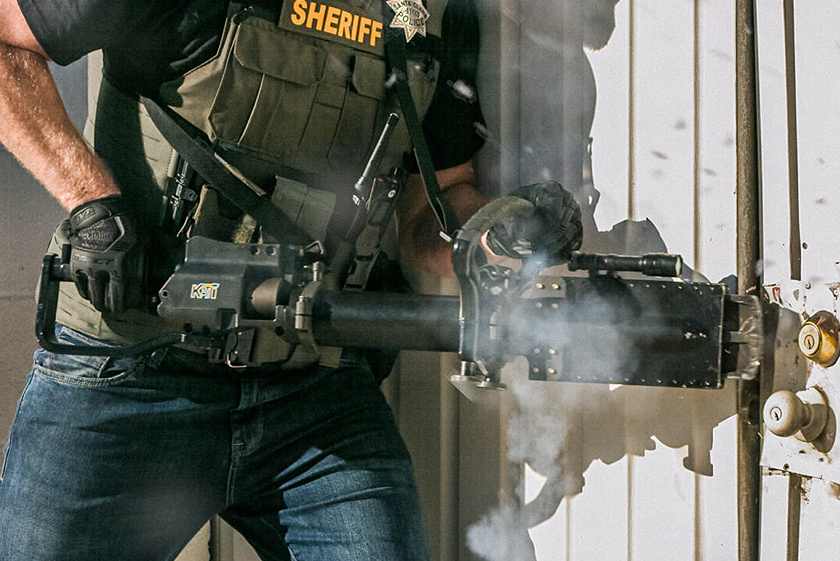

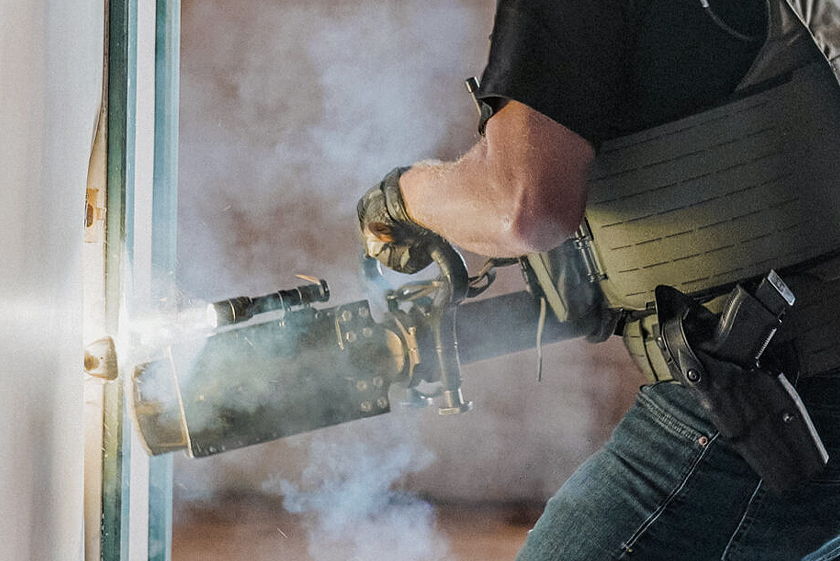

The KBT™ utilizes a proprietary blank cartridge to deliver up to 850 ft/lb of kinetic energy through the steel RAM head. The force is mechanically driven through the RAM, which creates a 2.5" breaching impact of the internal plate to defeat most doors and walls. No projectile or explosive energy leaves the device except for the force of the RAM, which resets in less than a second for multiple breaches.
KEY FEATURES:
Hardened impact steel ram with 2.5" plate travel
Delivers up to 850 ft./lbs. of force
Breaches metal security screen doors
Defeats outward opening steel doors in steel frame
Capable of porting cinder block walls
115 dB noise report
28 lbs. total tool weight

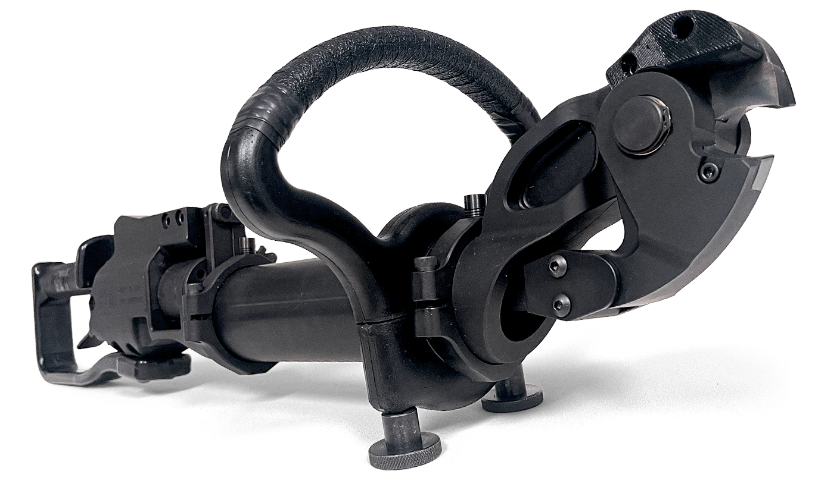

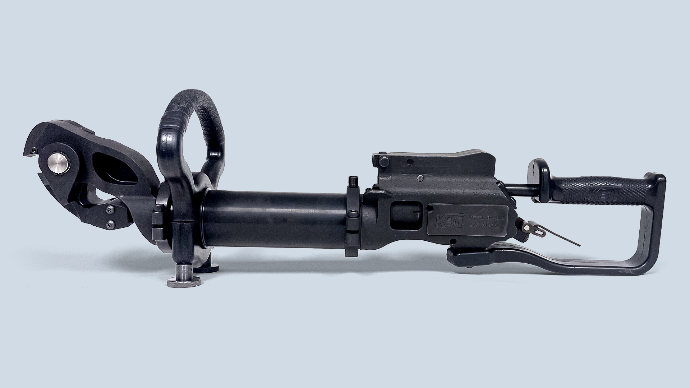

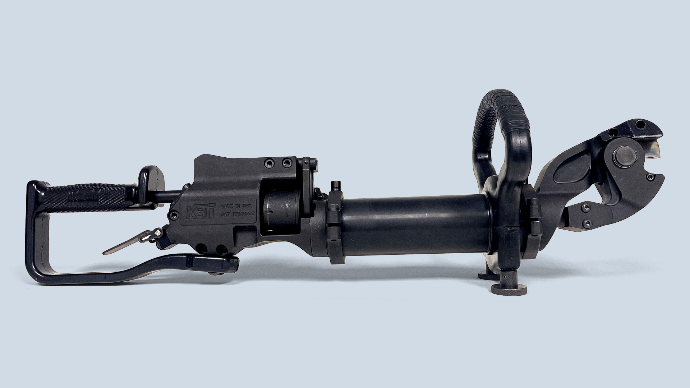

KBT CHOP
The KBT™ utilizes the same blank cartridge to deliver over 70 Ksi of cutting force through the steel teeth of the CHOP head. Using a pivoting jaw and impact-resistant, hardened teeth, the CHOP is capable of cutting up to 3/4" steel bars, locks, cables, chains, rebar, and wrought iron to gain rapid entry during high-risk operations.
KEY FEATURES:
Integrates with all KBT breaching tools
Delivers over 70 Ksi cutting force
Hardened cutting teeth are designed for hundreds of cuts
Teeth can be replaced with a single hex wrench
Defeats steel and iron up to 3/4"
Resets in less than a second for subsequent cuts
100 dB noise report
32 lbs. total tool weight
KBT RIP
The KBT™ RIP utilizes the same proprietary blank cartridge to deliver up to 850 ft./lbs. of impact force to create an anchor point through difficult barriers. Once deployed, the RIP anchors securely behind the target while leaving an exterior attachment point for a vehicle or pulling system. With a 10,000 lb. tensioned safe working load, RIP provides a powered solution for removing barriers such as garage doors.
KEY FEATURES:
Creates an anchor point through existing barriers
Delivers up to 850 ft./lbs. of force
Anchors securely behind the target material
Provides an accessible exterior attachment point
10,000 lb. tensioned safe working load
Designed for vehicle or mechanical pulling systems
KBT PUNCH
The KBT™ PUNCH utilizes the same proprietary blank cartridge to deliver up to 850 ft./lbs. of impact force through a 4" combined shatter-and-cut face. Designed to defeat laminated glass, the PUNCH simultaneously shatters the exterior glass and cuts through the internal polymer layer. It can also port drywall to rapidly create openings for diversionary devices, observation, or rifle access.
KEY FEATURES:
4" diameter combined shatter-and-cut impact face
Delivers up to 850 ft./lbs. of force
Defeats laminated and hurricane-rated glass
Capable of porting vehicle windows and drywall
Shatters glass while cutting the internal polymer layer
Creates diversionary device, observation, and rifle ports
